IR21044

High and Low Side Driver

IR21044 Datasheet (205.08 KB)

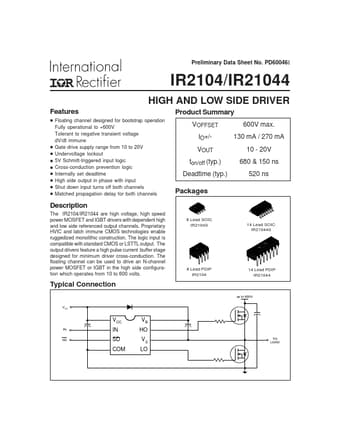

Preview of IR21044 PDF

Datasheet Details

Part number:

IR21044

Manufacturer:

International Rectifier

File Size:

205.08 KB

Description:

High and low side driver.

IR21044 Features

* Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune

* Gate drive supply range from 10 to 20V

* Undervoltage lockout

* 5V Schmitt-triggered input logic

* Cross-conduction prevention

IR21044 General Description

The IR2104/IR21044 are high voltage, high speed power MOSFET and IGBT drivers with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output. .
