IR2104S HALF-BRIDGE DRIVER

International Rectifier

Description

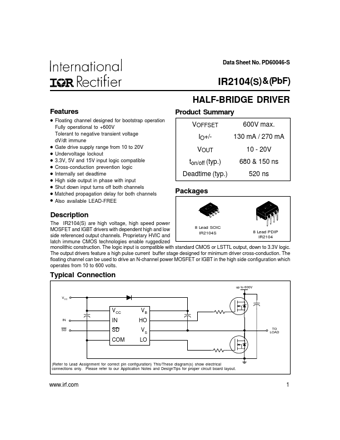

Data Sheet No.PD60046-S IR2104(S) & (PbF) HALF-BRIDGE DRIVER .
The IR2104(S) are high voltage, high speed power 8 Lead SOIC MOSFET and IGBT drivers with dependent high and low 8 Lead PDIP IR2104S side referenced o.

📥 Download Datasheet

IR2104S Datasheet Preview — Preview of IR2104S PDF

Datasheet Specifications

Part number: IR2104S
Manufacturer: International Rectifier
File Size: 137.14 KB
Datasheet: IR2104S_InternationalRectifier.pdf
Description: HALF-BRIDGE DRIVER

Features

* Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune Gate drive supply range from 10 to 20V Undervoltage lockout 3.3V, 5V and 15V input logic compatible Cross-conduction prevention logic Internally set deadtime Hig
