IR21363, IR2136 3-PHASE BRIDGE DRIVER

International Rectifier

Description

IR213(6,62,63,65,66,67,68)(J&S) & PbF Data Sheet No.PD60166 revU IR2136/IR21362/IR21363/IR21365/ IR21366/IR21367/IR21368 (J&S) & (PbF) 3-PHASE BRIDG.

📥 Download Datasheet

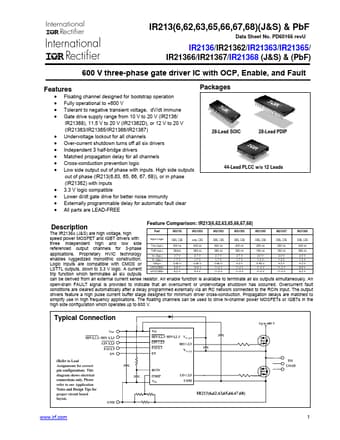

IR21363 Datasheet Preview — This datasheet PDF includes multiple part numbers: IR21363, IR2136. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: IR21363, IR2136
Manufacturer: International Rectifier
File Size: 928.81 KB
Datasheet: IR2136-InternationalRectifier.pdf
Description: 3-PHASE BRIDGE DRIVER
Note: This datasheet PDF includes multiple part numbers: IR21363, IR2136.
Please refer to the document for exact specifications by model.

Features

* Floating channel designed for bootstrap operation
* Fully operational to +600 V
* Tolerant to negative transient voltage, dV/dt immune
* Gate drive supply range from 10 V to 20 V (IR2136/ IR21368), 11.5 V to 20 V (IR21362D), or 12 V to 20 V (IR21363/IR21365/IR21366/
