IR2154

SELF-OSCILLATING HALF-BRIDGE DRIVER

International Rectifier

IR2154 Features

* Integrated 600V half-bridge gate driver

* 15.6V zener clamp on Vcc

* True micropower start up

* Tighter initial deadtime control

* Low temperature coefficient deadtime

* Shutdown feature (1/6th Vcc) on CT pin

* Increased undervoltage lockout

IR2154 General Description

The IR2154 is an improved version of the popular IR2152 gate driver IC, and incorporates a high voltage half-bridge gate driver with a front end oscillator similar to the industry standard CMOS 555 timer. The IR2154 provides more functionality and is easier to use than previous ICs. A shutdown featu.

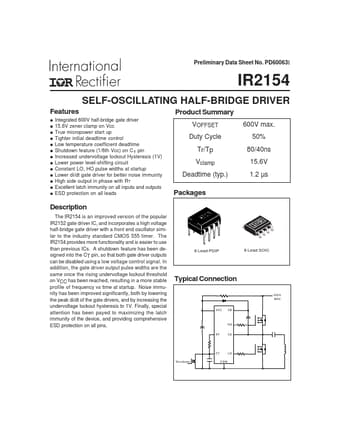

IR2154 Datasheet (124.71 KB)

IR2154 Datasheet Preview — Preview of IR2154 PDF

Datasheet Details

Part number:

IR2154

Manufacturer:

International Rectifier

File Size:

124.71 KB

Description:

Self-oscillating half-bridge driver.
