IR3502 - CONTROLLER

Product Overview

International Rectifier

Datasheet Details

Part number	IR3502
Manufacturer	International Rectifier
File Size	1.15 MB
Description	CONTROLLER
Datasheet	IR3502 Datasheet

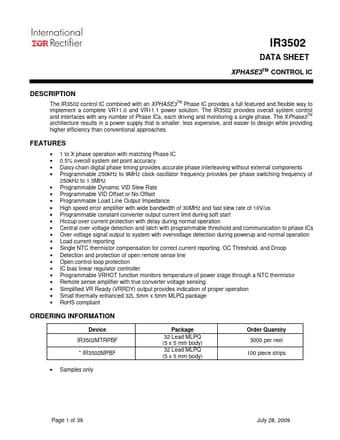

Additional preview pages of the IR3502 datasheet.

Product details

Description

The IR3502 control IC combined with an XPHASE3TM Phase IC provides a full featured and flexible way to implement a complete VR11.0 and VR11.1 power solution.

Features

1 to X phase operation with matching Phase IC.
0.5% overall system set point accuracy.
Daisy-chain digital phase timing provides accurate phase interleaving without external components.
Programmable 250kHz to 9MHz clock oscillator frequency provides per phase switching frequency of 250kHz to 1.5MHz.
Programmable Dynamic VID Slew Rate.
Programmable VID Offset or No Offset.
Programmable Load Line Output Impedance.
High speed.
