IR3521 XPHASE3 AMD SVID CONTROLLER

IR3521 Description

IR3521 DATA SHEET XPHASE3TM AMD SVID CONTROL IC .
The IR3521 Control IC combined with an xPHASE3TM Phase IC provides a full featured and flexible way to implement a complete AMD SVID power solution.

IR3521 Features

* 2 converter outputs for the AMD processor VDD core and VDDNB auxiliary planes
* Supports High Speed (HS) I2C Serial communications
* PSI_L serial commands are communicated to a programmable number of phase ICs
* 0.5% overall system set point accuracy
* High speed error amplifie

📥 Download Datasheet

Preview of IR3521 PDF

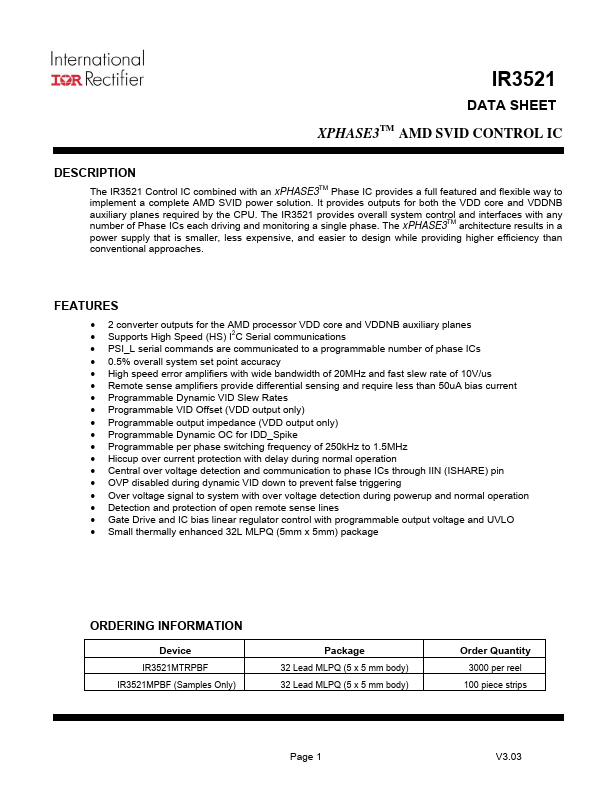

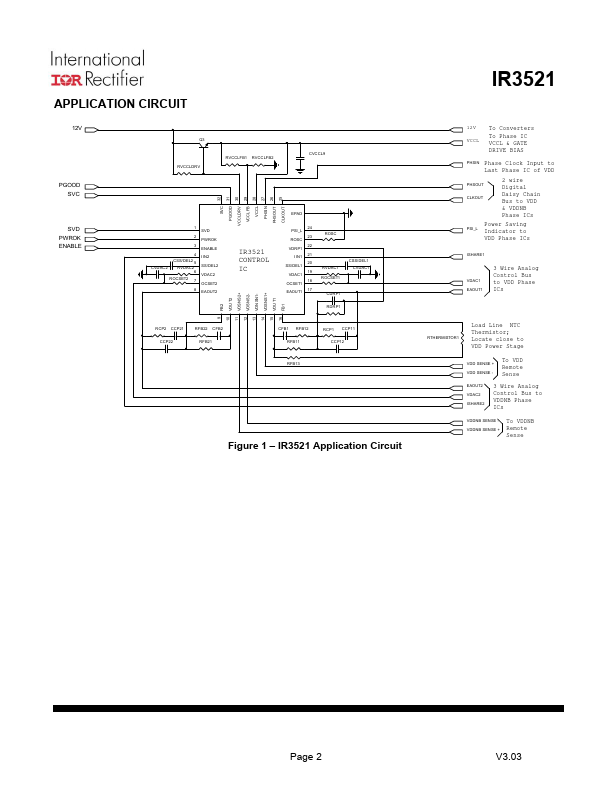

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IR3521
Manufacturer
International Rectifier
File Size
479.04 KB
Datasheet
IR3521_InternationalRectifier.pdf
Description
XPHASE3 AMD SVID CONTROLLER
