IR3628MPBF

HIGH FREQUENCY SYNCHRONOUS PWM BUCK CONTROLLER

IR3628MPBF Features

* Internal 600kHz Oscillator Operates with Single 5V or 12V Supply Programmable Over Current Protection Hiccup Current Limit Using M

IR3628MPBF General Description

The IR3628 is a PWM controller designed for high performance synchronous Buck DC/DC applications. The IR3628 drives a pair of external N-MOSFETs using a fixed 600kHz switching frequency allowing the use of small external components. The output voltage can be precisely regulated using the internal 0..

IR3628MPBF Datasheet (613.96 KB)

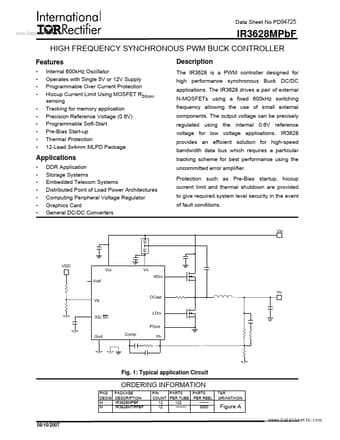

Preview of IR3628MPBF PDF

Datasheet Details

Part number:

IR3628MPBF

Manufacturer:

International Rectifier

File Size:

613.96 KB

Description:

High frequency synchronous pwm buck controller.
