IR3629MPBF, IR3629A Datasheet - International Rectifier

IR3629MPBF, IR3629A, HIGH FREQUENCY SYNCHRONOUS PWM BUCK CONTROLLER

Data Sheet No.PD94726 www.DataSheet4U.com IR3629/IR3629A MPbF .
The IR3629/IR3629A is a PWM controller designed for high performance synchronous Buck DC/DC applications.

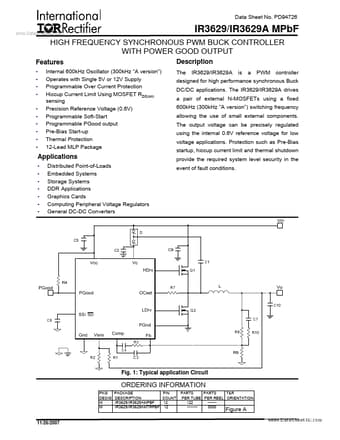

datasheet Preview Page 1 from Datasheet4u.com

IR3629A_InternationalRectifier.pdf

IR3629MPBF Datasheet Preview — This datasheet PDF includes multiple part numbers: IR3629MPBF, IR3629A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IR3629MPBF, IR3629A

Manufacturer:

International Rectifier

File Size:

635.36 KB

Description:

HIGH FREQUENCY SYNCHRONOUS PWM BUCK CONTROLLER

Note:

This datasheet PDF includes multiple part numbers: IR3629MPBF, IR3629A.
Please refer to the document for exact specifications by model.

Features

* Internal 600kHz Oscillator (300kHz “A version”) Operates with Single 5V or 12V Supply Programmable Over Current Protection Hiccup

Applications

* The IR3629/IR3629A drives a pair of external N-MOSFETs using a fixed 600kHz (300kHz “A version”) switching frequency allowing the use of small external components. The output voltage can be precisely regulated using the internal 0.6V reference voltage for low voltage applications. Protection such a
