IRFF120 - N-channel Transistors

IRFF120 Description

REPETITIVE AVALANCHE AND dv/dt RATED HEXFET® TRANSISTORS THRU-HOLE TO-205AF (TO-39) Product Summary Part Number BVDSS IRFF120 100V RDS(on) ID 0..
The HEXFET® technology is the key to International Rectifier’s HiRel advanced line of power MOSFET transistors.

IRFF120 Features

* Repetitive Avalanche Ratings
* Dynamic dv/dt Rating
* Hermetically Sealed
* Simple Drive Requirements

IRFF120 Applications

* such as switching power supplies, motor controls, inverters, choppers, audio amplifiers and high energy pulse circuits. Absolute Maximum Ratings Symbol Parameter Value ID1 @ VGS = 10V, TC = 25°C ID2 @ VGS = 10V, TC = 100°C IDM @ TC = 25°C PD @ TC = 25°C VGS EAS IAR EAR dv/dt TJ TSTG Continuous

📥 Download Datasheet

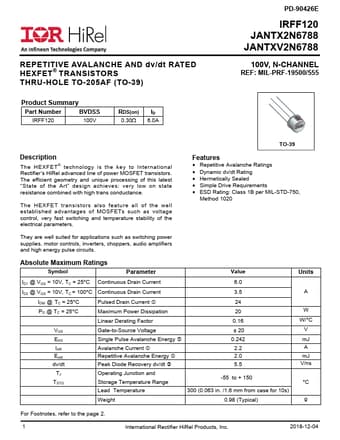

Preview of IRFF120 PDF
datasheet Preview Page 2 datasheet Preview Page 3
