IRFP22N50A - SMPS MOSFET

Datasheet Summary

Features

king Information E X A M P L E : T H IS IS A N IR F P E 3 0 W IT H A S S E M B L Y LOT C ODE 3A1Q A IN T E R N A T IO N A L R E C T IF I E R LOGO PA R T NU M B E R IR F P E 30 3A1Q 9302 D ATE CO DE (Y Y W W ) Y Y = YE A R W W W EEK A S SE M B L Y LOT CODE Notes: Repetitive rating; pulse width limited by max. junction temperature. (See fig. 11).
Pulse width ≤ 300µs; duty cycle ≤ 2%. Coss eff. is a fixed capacitance that gives the same charging time as Coss while VDS is rising f.

International Rectifier

📥 Download Datasheet

Datasheet Details

Part number	IRFP22N50A
Manufacturer	International Rectifier
File Size	107.76 KB
Description	SMPS MOSFET
Datasheet	IRFP22N50A Datasheet
Additional preview pages of the IRFP22N50A datasheet.

📁 Similar Datasheet

IRFP22N50A - Power MOSFET (Vishay)
IRFP22N50A - N-Channel MOSFET (INCHANGE)
IRFP22N50APBF - Power MOSFET (IRF)
IRFP22N60K - Power MOSFET (Vishay)
IRFP22N60K - N-Channel MOSFET (INCHANGE)
IRFP21N60L - Power MOSFET (Vishay)
IRFP21N60L - N-Channel MOSFET (INCHANGE)
IRFP23N50L - Power MOSFET (Vishay)
IRFP23N50L - N-Channel MOSFET (INCHANGE)
IRFP240 - N-Channel MOSFET Transistor (Inchange Semiconductor)

Other Datasheets by International Rectifier

IRFP22N60K - SMPS MOSFET
IRFP22N60KPBF - HEXFET Power MOSFET
IRFP23N50L - SMPS MOSFET
IRFP240 - Power MOSFET
IRFP240PBF - Power MOSFET
IRFP2410 - Fourth Generation MOSFET
IRFP244 - Power MOSFET
IRFP250 - Power MOSFET

Full PDF Text Transcription

Click to expand full text

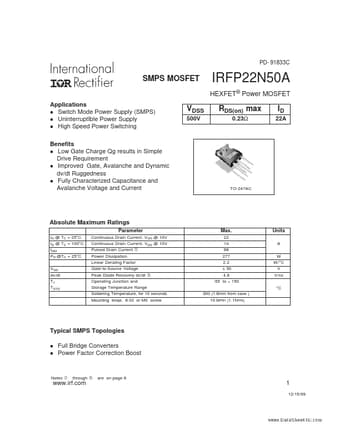

PD- 91833C SMPS MOSFET IRFP22N50A HEXFET® Power MOSFET Applications l Switch Mode Power Supply (SMPS) l UninterruptIble Power Supply l High Speed Power Switching Benefits l Low Gate Charge Qg results in Simple Drive Requirement l Improved Gate, Avalanche and Dynamic dv/dt Ruggedness l Fully Characterized Capacitance and Avalanche Voltage and Current VDSS 500V RDS(on) max 0.
