IRFU5505, IRFR5505, HEXFET Power MOSFET

PD - 9.1610B IRFR/U5505 HEXFET® Power MOSFET l l l l l l l Ultra Low On-Resistance P-Channel Surface Mount (IRFR5505) Straight Lead (IRFU5505) Advan.
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area.

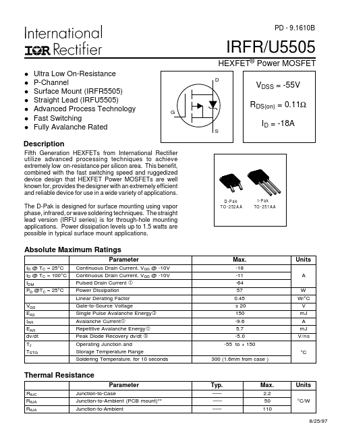

datasheet Preview Page 1 from Datasheet4u.com

IRFR5505_InternationalRectifier.pdf

IRFU5505 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRFU5505, IRFR5505. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRFU5505, IRFR5505

Manufacturer:

International Rectifier

File Size:

131.43 KB

Description:

HEXFET Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: IRFU5505, IRFR5505.
Please refer to the document for exact specifications by model.

Features

* 1.14 (.045) 0.76 (.030) 0.89 (.035) 0.64 (.025) 0.25 ( .010) M A M B NOT ES: 0.58 (.023) 0.46 (.018) 2.28 (.090) 4.57 (.180) 1 DIME NSIO NING & T OLE RANCING P ER A NSI Y 14.5M, 1982. 2 CO NTRO LLING DIMENS ION : INCH. 3 CO NFO RMS T O JEDE C O UTLINE TO -252AA . 4 DIME NSIO NS S HO W N ARE BEF

Applications

* The D-Pak is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight www. DataSheet4U. com lead version (IRFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 watts are possible in typical surface mount applications. D
