IRFU9N20DPBF, IRFR9N20DPBF Datasheet - International Rectifier

IRFU9N20DPBF, IRFR9N20DPBF, HEXFET Power MOSFET

PD - 95376A SMPS MOSFET Applications High frequency DC-DC converters l Lead-Free l HEXFET® Power MOSFET IRFR9N20DPbF IRFU9N20DPbF ID 9.4A VDSS 200.

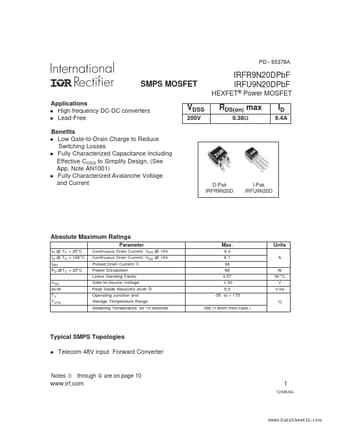

datasheet Preview Page 1 from Datasheet4u.com

IRFR9N20DPBF_InternationalRectifier.pdf

IRFU9N20DPBF Datasheet Preview — This datasheet PDF includes multiple part numbers: IRFU9N20DPBF, IRFR9N20DPBF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRFU9N20DPBF, IRFR9N20DPBF

Manufacturer:

International Rectifier

File Size:

225.50 KB

Description:

HEXFET Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: IRFU9N20DPBF, IRFR9N20DPBF.
Please refer to the document for exact specifications by model.

Features

* ww. irf. com 9 IRFR/U9N20DPbF D-Pak (TO-252AA) Tape & Reel Information Dimensions are shown in millimeters (inches) TR TRR TRL 16.3 ( .641 ) 15.7 ( .619 ) 16.3 ( .641 ) 15.7 ( .619 ) 12.1 ( .476 ) 11.9 ( .469 ) FEED DIRECTION 8.1 ( .318 ) 7.9 ( .312 ) FEED DIRECTION NOTES : 1. CONTROLLING DIM

Applications

* High frequency DC-DC converters l Lead-Free l HEXFET® Power MOSFET IRFR9N20DPbF IRFU9N20DPbF ID 9.4A VDSS 200V RDS(on) max 0.38Ω Benefits Low Gate-to-Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001) l F
