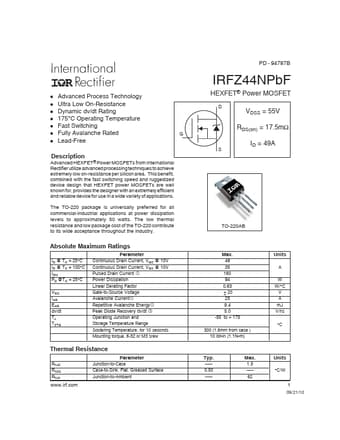

IRFZ44N Datasheet | International Rectifier

escription Advanced HEXFET® Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, bined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-220 package is universally preferred for all mercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry. Absolute Maximum Ratings ID @ TC = 25°C ID @ TC = 100°C IDM PD @TC = 25°C VGS IAR EAR dv/dt TJ TSTG Parameter Continuous Drain Current, VGS @ 10V Continuous Drain Current, VGS @ 10V Pulsed Drain Current  Power Dissipation Linear Derating Factor Gate-to-Source Voltage Avalanche Current Repetitive Avalanche Energy Peak Diode Recovery dv/dt - Operating Junction and Storage Temperature Range Soldering Temperature, for 10 seconds Mounting torque, 6-32 or M3 srew Thermal Resistance RθJC RθCS RθJA Parameter Junction-to-Case Case-to-Sink, Flat, Greased Surface Junction-to-Ambient .irf. - 94787B IRFZ44NPb F HEXFET® Power MOSFET VDSS = 55V RDS(on) = 17.5mΩ ID = 49A TO-220AB Max. 49 35 160 94 0.63 ± 20 25 9.4 5.0 -55 to + 175 300 (1.6mm from case ) 10 lbf- in (1.1N- m) Units W W/°C V A m J V/ns °C Typ. - - - 0.50 - - - Max....
