IRIS-F6426S

INTEGRATED SWITCHER

IRIS-F6426S Features

* Oscillator is provided on the monolithic control with adopting On-ChipTrimming technology.

* Small temperature characteristics variation by adopting a comparator to compensate for temperature on the control part.

* Low start-up circuit current (100uA max)

* Built-in

IRIS-F6426S General Description

IRIS-F6426S is a hybrid IC consists from power MOSFET and a controller IC, designed for Quasi-Resonant (including low frequency PRC) fly-back converter type SMPS (Switching Mode Power Supply) applications. This IC realizes high efficiency, low noise, downsizing and standardizing of a power supply .

IRIS-F6426S Datasheet (265.39 KB)

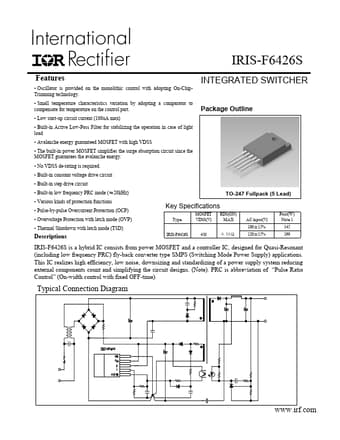

Preview of IRIS-F6426S PDF

Datasheet Details

Part number:

IRIS-F6426S

Manufacturer:

International Rectifier

File Size:

265.39 KB

Description:

Integrated switcher.
