IRIS-G5653

INTEGRATED SWITCHER

IRIS-G5653 Features

* Oscillator is provided on the monolithic control with adopting On-ChipTrimming technology.

* Small temperature characteristics variation by adopting a comparator to compensate for temperature on the control part.

* Low start-up circuit current (100uA max)

* Built-in

IRIS-G5653 General Description

IRIS-G5653A is a hybrid IC consists from power MOSFET and a controller IC, designed for Indirect feed-back QuasiResonant (including low frequency PRC) fly-back converter type SMPS (Switching Mode Power Supply) applications. This IC realizes high efficiency, low noise, downsizing and standardizing .

IRIS-G5653 Datasheet (271.55 KB)

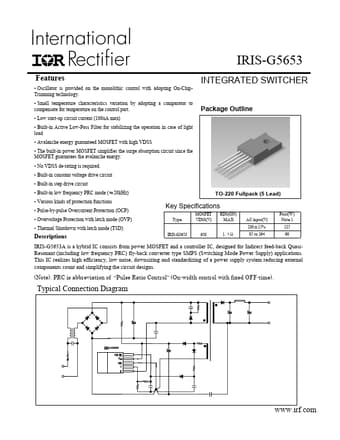

Preview of IRIS-G5653 PDF

Datasheet Details

Part number:

IRIS-G5653

Manufacturer:

International Rectifier

File Size:

271.55 KB

Description:

Integrated switcher.
