IRIS-W6754, INTEGRATED SWITCHER

www.DataSheet4U.com Data Sheet No.PD 96952A IRIS-W6754 .
IRIS-W6754 is a hybrid IC consisting of a power MOSFET and a controller IC, designed for Quasi-Resonant (including low frequency PWM) fly-back convert.

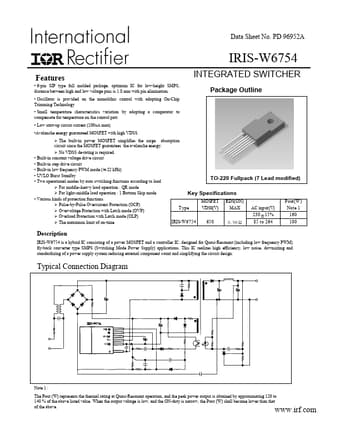

datasheet Preview Page 1 from Datasheet4u.com

IRIS-W6754_InternationalRectifier.pdf

IRIS-W6754 Datasheet Preview — Preview of IRIS-W6754 PDF

Datasheet Details

Part number:

IRIS-W6754

Manufacturer:

International Rectifier

File Size:

308.10 KB

Description:

INTEGRATED SWITCHER

Features

* 6-pin SIP type full molded package, optimum IC for low-height SMPS, distance between high and low voltage pins is 1.8 mm with pin elimination.
* Oscillator is provided on the monolithic control with adopting On-Chip Trimming Technology
* Small temperature characteristics va

Applications

* This IC realizes high efficiency, low noise, downsizing and standardizing of a power supply system reducing external component count and simplifying the circuit design. Typical Connection Diagram IRIS-W6754 O CP / BD FB SS / O LP Vcc S/ G ND D Note 1: The Pout (W) represents the thermal rating a
