IRKH91, IRKT71 Datasheet - International Rectifier

IRKH91, IRKT71, (IRKT71 / IRKT91) THYRISTOR/ DIODE and THYRISTOR/ THYRISTOR

Bulletin I27132 rev.I 09/04 IRK.71, .91 SERIES THYRISTOR/ DIODE and THYRISTOR/ THYRISTOR .
The Generation V of Add-A-pak module combine the excellent thermal performance obtained by the usage of Direct Bonded Copper substrate with superior m.

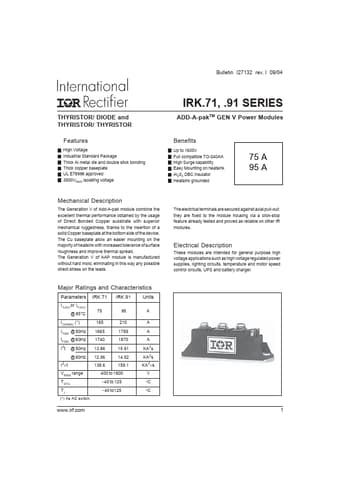

datasheet Preview Page 1 from Datasheet4u.com

IRKT71_InternationalRectifier.pdf

IRKH91 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRKH91, IRKT71. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRKH91, IRKT71

Manufacturer:

International Rectifier

File Size:

319.39 KB

Description:

(IRKT71 / IRKT91) THYRISTOR/ DIODE and THYRISTOR/ THYRISTOR

Note:

This datasheet PDF includes multiple part numbers: IRKH91, IRKT71.
Please refer to the document for exact specifications by model.

Features

* High Voltage Industrial Standard Package Thick Al metal die and double stick bonding Thick copper baseplate UL E78996 approved 3500VRMS isolating voltage ADD-A-pakTM GEN V Power Modules Benefits Up to 1600V Full compatible TO-240AA High Surge capability Easy Mounting on heatsink Al203 DBC insulato

Applications

* such as high voltage regulated power supplies, lighting circuits, temperature and motor speed control circuits, UPS and battery charger. Major Ratings and Characteristics Parameters IT(AV) or I F(AV) @ 85°C IO(RMS) (
* ) ITSM @ 50Hz IFSM @ 60Hz I t 2 IRK.71 75 165 1665 1740 13.86 12.56 138.6 IR
