Part number:
IRKT136
Manufacturer:
International Rectifier
File Size:
381.02 KB
Description:

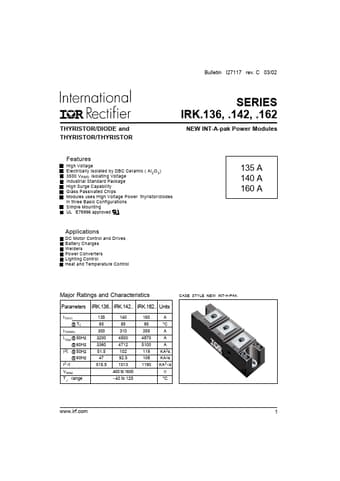

(irkt136/142/162) thyristor/diode and thyristor/thyristor.
* High Voltage Electrically Isolated by DBC Ceramic ( Al 2 O 3 ) 3500 V RMS Isolating Voltage Industrial Standard Package High Surge Capability Glass Passivated Chips Modules uses High Voltage Power thyristor/diodes in three Basic Configurations Simple Mounting UL E78996 approved NEW INT-A-pak Power
IRKT136
International Rectifier
381.02 KB
(irkt136/142/162) thyristor/diode and thyristor/thyristor.
