IRLML2030, IRLML2030TRPBF Power MOSFET

International Rectifier

Description

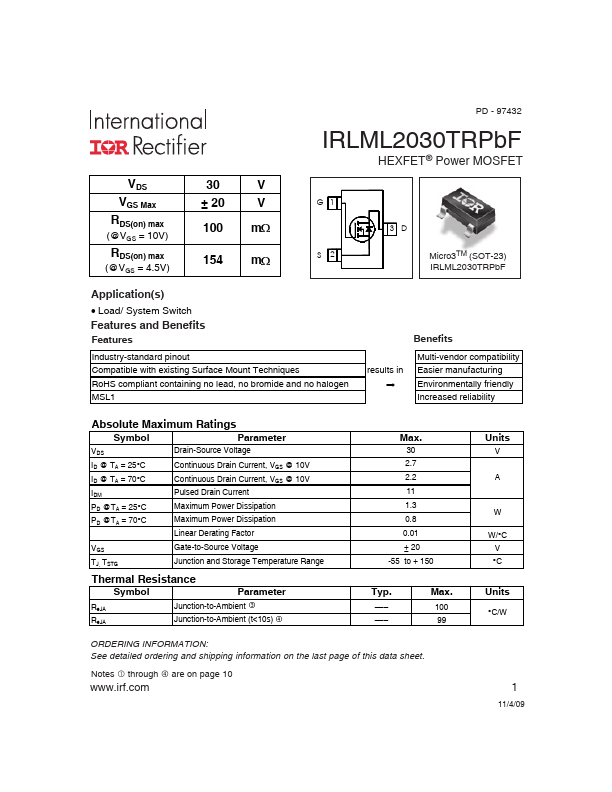

PD - 97432 IRLML2030TRPbF HEXFET® Power MOSFET VDS 30 V VGS Max ± 20 V G1 RDS(on) max (@VGS = 10V) 100 m: RDS(on) max 154 m: S2 (@VGS = .

📥 Download Datasheet

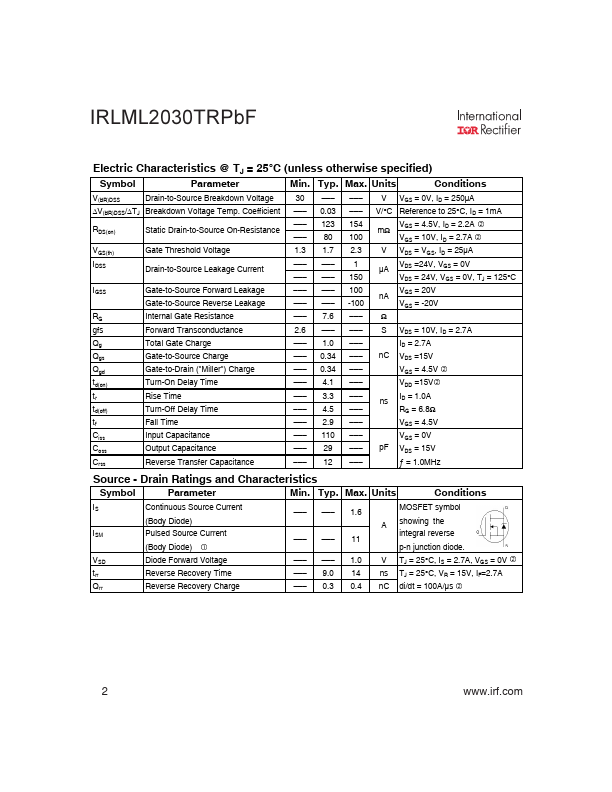

IRLML2030 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRLML2030, IRLML2030TRPBF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: IRLML2030, IRLML2030TRPBF
Manufacturer: International Rectifier
File Size: 266.63 KB
Datasheet: IRLML2030TRPBF_InternationalRectifier.pdf
Description: Power MOSFET
Note: This datasheet PDF includes multiple part numbers: IRLML2030, IRLML2030TRPBF.
Please refer to the document for exact specifications by model.

Features

* Features Industry-standard pinout Compatible with existing Surface Mount Techniques RoHS compliant containing no lead, no bromide and no halogen MSL1 Benefits results in ⇒ Multi-vendor compatibility Easier manufacturing Environmentally friendly Increased reliability Absolute Maximum Ratings Sym
