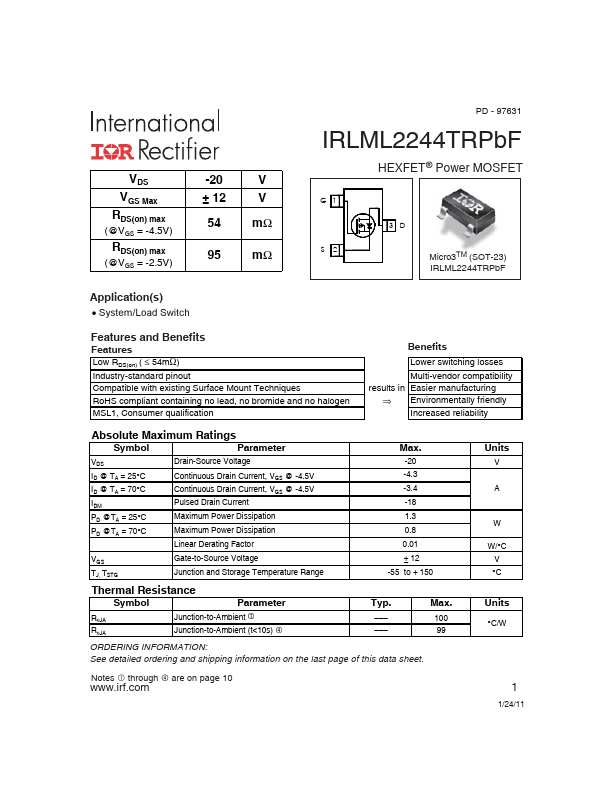

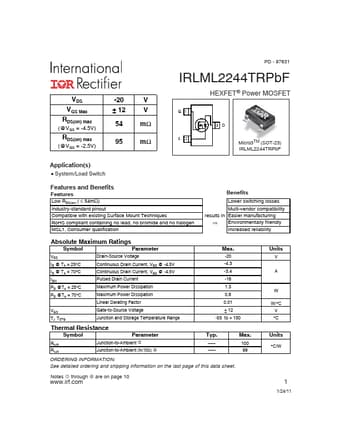

IRLML2244
Features and Benefits Features
Low RDS(on) ( ≤ 54mΩ) Industry-standard pinout patible with existing Surface Mount Techniques Ro HS pliant containing no lead, no bromide and no halogen MSL1, Consumer qualification
Benefits
Lower switching losses Multi-vendor patibility results in Easier manufacturing ⇒ Environmentally friendly Increased reliability
Absolute Maximum Ratings
Symbol
Parameter
Max.
Drain-Source Voltage
-20
ID @ TA = 25°C
Continuous Drain Current, VGS @ -4.5V
-4.3
ID @ TA = 70°C
Continuous Drain Current, VGS @ -4.5V
-3.4
Pulsed Drain Current
-18
PD @TA = 25°C
Maximum Power Dissipation
PD @TA = 70°C
Maximum Power Dissipation
Linear Derating Factor
VGS TJ, TSTG
Gate-to-Source Voltage Junction and Storage Temperature Range
± 12 -55 to + 150
Thermal Resistance
Symbol
RθJA RθJA
Parameter e Junction-to-Ambient f Junction-to-Ambient (t<10s)
Typ.
- -
- -
- -...
