IRLML2246, IRLML2246TRPbF Power MOSFET

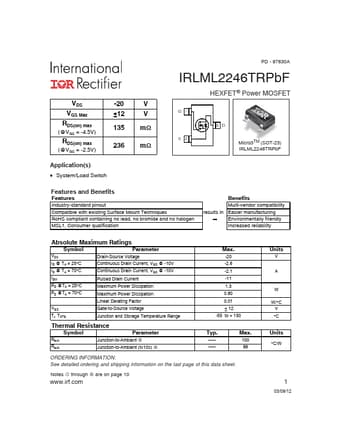

📥 Download Datasheet  Datasheet Preview Page 1

Description

VDS VGS Max RDS(on) max (@VGS = -4.5V) RDS(on) max (@VGS = -2.5V) -20 ±12 135 236 Application(s) * System/Load Switch V V m m PD - 97630A IR.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRLML2246, IRLML2246TRPbF. Please refer to the document for exact specifications by model.

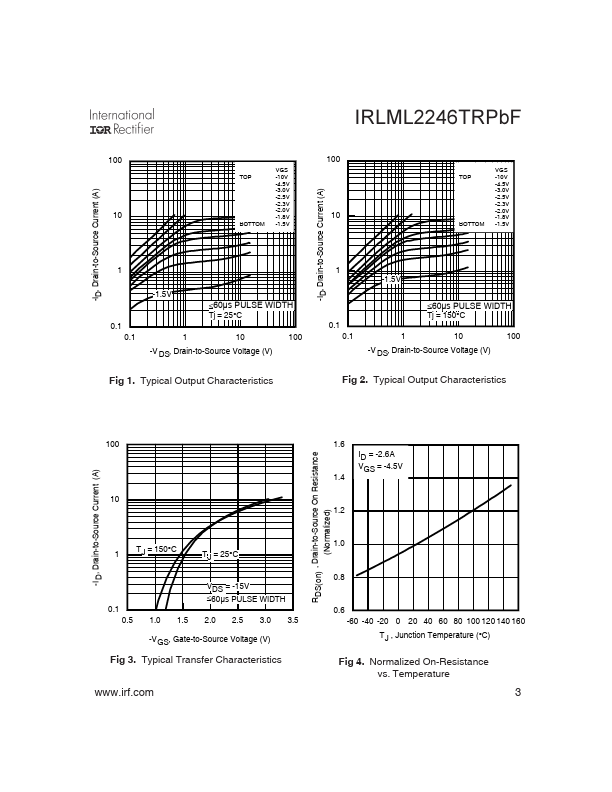

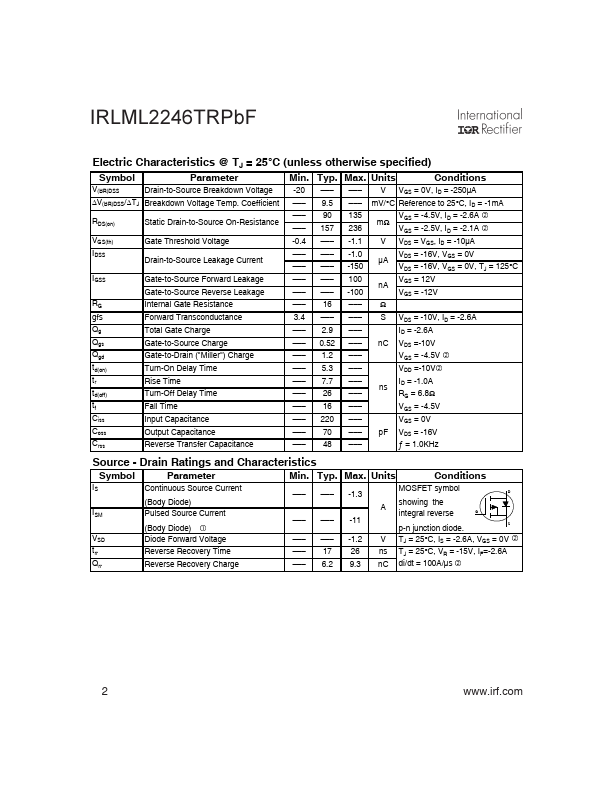

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
IRLML2246, IRLML2246TRPbF
Manufacturer
International Rectifier
File Size
209.88 KB
Datasheet
IRLML2246TRPbF-InternationalRectifier.pdf
Description
Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IRLML2246, IRLML2246TRPbF.
Please refer to the document for exact specifications by model.

Features

* Features Industry-standard pinout Compatible with existing Surface Mount Techniques RoHS compliant containing no lead, no bromide and no halogen MSL1, Consumer qualification Benefits Multi-vendor compatibility results in Easier manufacturing  Environmentally friendly Increased reliability Absolut
