* Industry-standard pinout SOT-23 Package Compatible with Existing Surface Mount Techniques RoHS Compliant, Halogen-Free MSL1, Industrial qualification Benefits ⇒ Multi-Vendor Compatibility Easier Manufacturing Environmentally Friendlier Increased Reliability Base Part Number IRLML6302TRPbF-1 Packa
IRLML6302PBF-1 Datasheet (252.92 KB)
IRLML6302PBF-1
International Rectifier
252.92 KB
Power mosfet.
VDS RDS(on) max
(@VGS = -4.5V)
Qg (typical) ID
(@TA = 25°C)
-20 0.60 2.4 -0.78
V Ω nC A

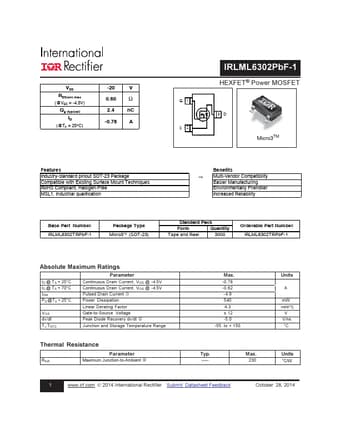

IRLML6302PbF-1
HEXFET® Power MOSFET
G1 S2
3D
Micro3TM
F.
