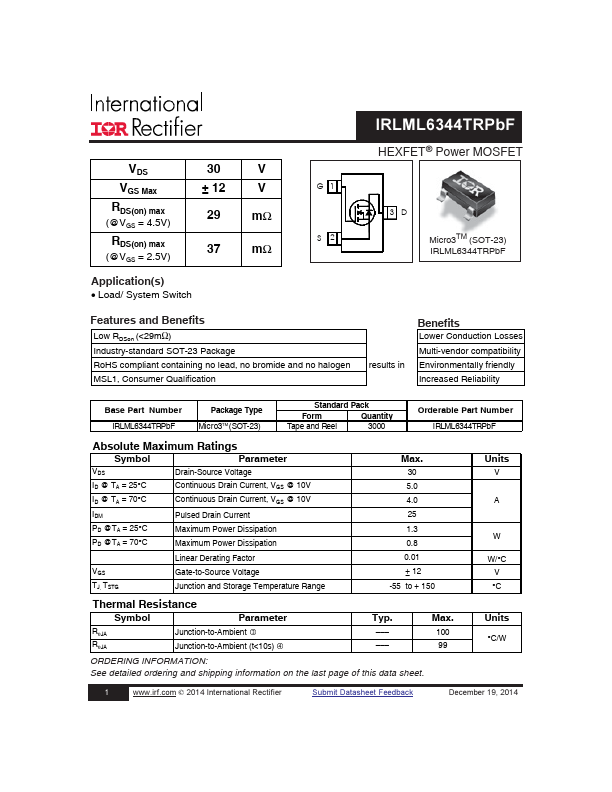

IRLML6344
Features and Benefits
Low RDSon (<29mΩ) Industry-standard SOT-23 Package Ro HS pliant containing no lead, no bromide and no halogen MSL1, Consumer Qualification results in
Benefits
Lower Conduction Losses Multi-vendor patibility Environmentally friendly Increased Reliability
Base Part Number IRLML6344TRPb F
Package Type Micro3™(SOT-23)
Standard Pack
Form
Quantity
Tape and Reel
Orderable Part Number IRLML6344TRPb F
Absolute Maximum Ratings
Symbol
Parameter
Drain-Source Voltage
ID @ TA = 25°C
Continuous Drain Current, VGS @ 10V
ID @ TA = 70°C
Continuous Drain Current, VGS @ 10V
Pulsed Drain Current
PD @TA = 25°C
Maximum Power Dissipation
PD @TA = 70°C
Maximum Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
TJ, TSTG
Junction and Storage Temperature Range
Max.
30 5.0 4.0 25 1.3 0.8 0.01 ± 12 -55 to + 150
Thermal Resistance
Symbol
RθJA RθJA
Parameter e Junction-to-Ambient f Junction-to-Ambient (t<10s)
Typ.
-...
