IRLML6346, IRLML6346TRPbF HEXFET Power MOSFET

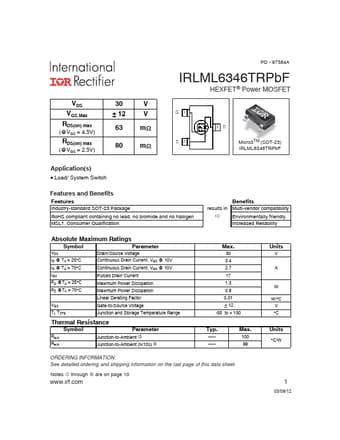

📥 Download Datasheet  Datasheet Preview Page 1

Description

VDS VGS Max RDS(on) max (@VGS = 4.5V) RDS(on) max (@VGS = 2.5V) 30 V ± 12 V 63 m 80 m PD - 97584A IRLML6346TRPbF HEXFET® Power MOSFET .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRLML6346, IRLML6346TRPbF. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
IRLML6346, IRLML6346TRPbF
Manufacturer
International Rectifier
File Size
225.45 KB
Datasheet
IRLML6346TRPbF-InternationalRectifier.pdf
Description
HEXFET Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IRLML6346, IRLML6346TRPbF.
Please refer to the document for exact specifications by model.

Features

* Features Industry-standard SOT-23 Package RoHS compliant containing no lead, no bromide and no halogen MSL1, Consumer Qualification Ö results in Benefits Multi-vendor compatibility Environmentally friendly Increased Reliability Absolute Maximum Ratings Symbol Parameter VDS Drain-Source Voltag
