IRLU014N, IRLR014N, HEXFET Power MOSFET

www.DataSheet.in PD- 94350 IRLR/U014N HEXFET® Power MOSFET Logic-Level Gate Drive Surface Mount (IRLR024N) Straight Lead (IRLU024N) Advanced Process.
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve the lowest possible on-resistance per silicon.

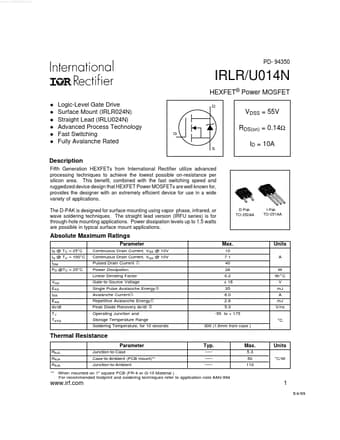

datasheet Preview Page 1 from Datasheet4u.com

IRLR014N_InternationalRectifier.pdf

IRLU014N Datasheet Preview — This datasheet PDF includes multiple part numbers: IRLU014N, IRLR014N. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRLU014N, IRLR014N

Manufacturer:

International Rectifier

File Size:

135.38 KB

Description:

HEXFET Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: IRLU014N, IRLR014N.
Please refer to the document for exact specifications by model.

Features

* 42 (.410) 9.40 (.370) LEAD ASSIGNMENTS 1 - GATE 2 - DRAIN 3 - SOURCE 4 - DRAIN -B1.52 (.060) 1.15 (.045) 3X 2X 1.14 (.045) 0.76 (.030) 0.89 (.035) 0.64 (.025) 0.25 (.010) M A M B NOTES: 1 DIMENSIONING & TOLERANCING PER ANSI Y14.5M, 1982. 4.57 (.180) 2 CONTROLLING DIMENSION : INCH. 3 CONFORMS TO JEDE

Applications

* The D-PAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 watts are possible in typical surface mount applications. D-Pak TO-252AA I-Pak
