IRLU3303, IRLR3303, Power MOSFET

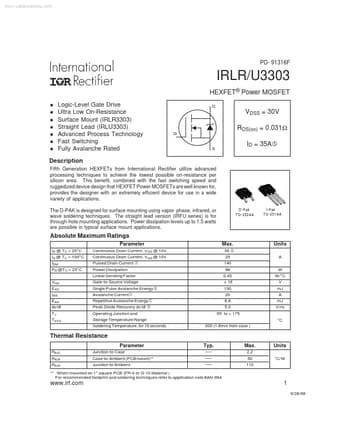

www.DataSheet4U.com PD- 91316F IRLR/U3303 HEXFET® Power MOSFET l l l l l l l Logic-Level Gate Drive Ultra Low On-Resistance Surface Mount (IRLR3303.
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve the lowest possible on-resistance per silicon.

datasheet Preview Page 1 from Datasheet4u.com

IRLR3303_InternationalRectifier.pdf

IRLU3303 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRLU3303, IRLR3303. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRLU3303, IRLR3303

Manufacturer:

International Rectifier

File Size:

165.95 KB

Description:

Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: IRLU3303, IRLR3303.
Please refer to the document for exact specifications by model.

Features

* nductor Curent Body Diode Forward Drop Ripple ≤ 5% ISD
* VGS = 5V for Logic Level Devices Fig 14. For N-Channel HEXFETS www. irf. com 7 IRLR/U3303 Package Outline TO-252AA Outline Dimensions are shown in millimeters (inches) 2 .3 8 (.0 9 4 ) 2 .1 9 (.0 8 6 ) 6 .7 3 (.2 6 5 ) 6 .3 5 (.2 5

Applications

* The D-PAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 watts are possible in typical surface mount applications. D -P ak T O -252 A A
