IRS2001 - HIGH AND LOW SIDE DRIVER

This page provides the datasheet information for the IRS2001, a member of the IRS2001PBF HIGH AND LOW SIDE DRIVER family.

Datasheet Summary

Description

low side referenced output channels.

ruggedized monolithic construction.

Features

  • Product Summary.
  • Floating channel designed for bootstrap operation.
  • Fully operational to +200 V.
  • Tolerant to negative transient voltage, dV/dt immune.
  • Gate drive supply range from 10 V to 20 V.
  • Undervoltage lockout.
  • 3.3 V, 5 V, and 15 V logic input compatible.
  • Matched propagation delay for both channels.
  • Outputs in phase with inputs.

📥 Download Datasheet

Datasheet preview – IRS2001

📁 Similar Datasheet

  • IRS20752LPBF - SOT-23 High-Side Gate Driver (Infineon)
  • IRS21867S - HIGH AND LOW SIDE DRIVER (IRF)
  • IRS2452AM - Class-D Audio-IC (Infineon)
  • IRS2461S - 400V Class D Audio Amplifier Controller (Infineon)
  • IRS2505LPBF - Boost PFC and SMPS Controller (Infineon)
  • IRS25411S - Synchronous buck LED driver (Infineon)
  • IRS25752LPBF - SOT-23 High-Side Gate Driver (Infineon)
  • IRS2890DS - Half-Bridge Driver (Infineon)
  • IRS2982S - LED/SMPS FLYBACK CONTROLLER (Infineon)
  • IRS2982SPBF - LED/SMPS FLYBACK CONTROLLER (Infineon)
Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text

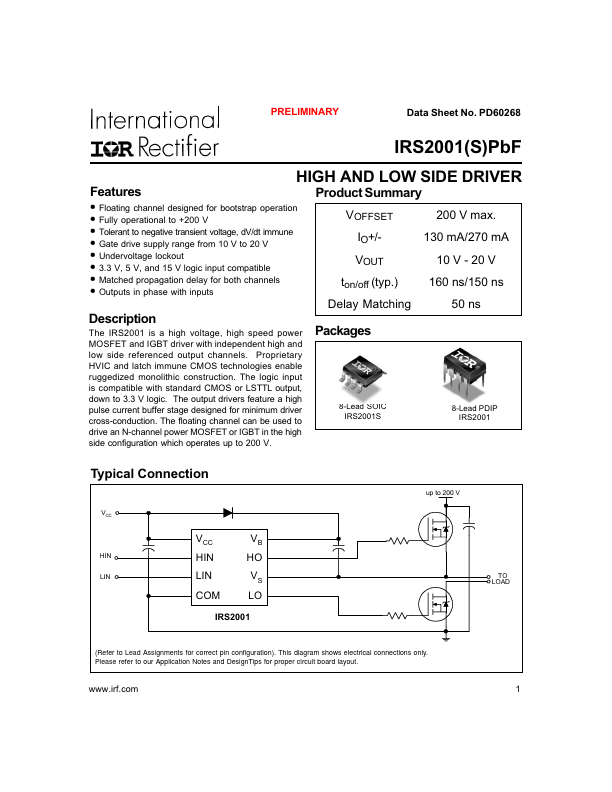

www.DataSheet4U.com PRELIMINARY Data Sheet No. PD60268 IRS2001(S)PbF HIGH AND LOW SIDE DRIVER Features Product Summary • Floating channel designed for bootstrap operation • Fully operational to +200 V • Tolerant to negative transient voltage, dV/dt immune • Gate drive supply range from 10 V to 20 V • Undervoltage lockout • 3.3 V, 5 V, and 15 V logic input compatible • Matched propagation delay for both channels • Outputs in phase with inputs VOFFSET 200 V max. IO+/- 130 mA/270 mA VOUT 10 V - 20 V ton/off (typ.) 160 ns/150 ns Delay Matching 50 ns Description The IRS2001 is a high voltage, high speed power Packages MOSFET and IGBT driver with independent high and low side referenced output channels.
