IRS2001MPBF

HIGH AND LOW SIDE DRIVER

IRS2001MPBF Features

* Product Summary

* Floating channel designed for bootstrap operation

* Fully operational to +200V Topology

* Tolerant to negative transient voltage, dV/dt immune VOFFSET

* Gate drive supply range from 10V to 20V

* Undervoltage lockout VOUT

* 3.3

IRS2001MPBF General Description

The IRS2001 is a high voltage, high speed power MOSFET and IGBT driver with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to.

IRS2001MPBF Datasheet (730.27 KB)

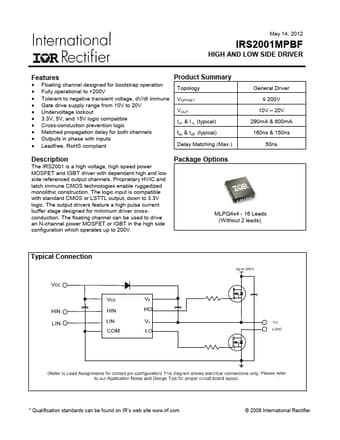

Preview of IRS2001MPBF PDF

Datasheet Details

Part number:

IRS2001MPBF

Manufacturer:

International Rectifier

File Size:

730.27 KB

Description:

High and low side driver.
