IRU1011-33PBF - 1.3A LOW DROPOUT POSITIVE FIXED REGULATOR

This page provides the datasheet information for the IRU1011-33PBF, a member of the IRU1011-33 1.3A LOW DROPOUT POSITIVE FIXED REGULATOR family.

Datasheet Summary

Description

The IRU1011-33 is a fixed linear regulator and it is capable of supplying 1.3A of continuous current over line and temperature range.

The IRU1011-33 is stable with low value ceramic capacitors, allowing designers flexibility in external component selection.

Features

  • Stable with Ceramic Capacitor Guaranteed < 1.3V Dropout at Full Load Current Fast Transient Response Output Current Limiting Built-In Thermal Shutdown.

📥 Download Datasheet

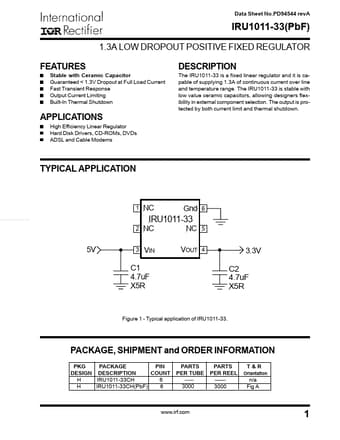

Datasheet preview – IRU1011-33PBF

Datasheet Details

Part number IRU1011-33PBF
Manufacturer International Rectifier
File Size 137.30 KB
Description 1.3A LOW DROPOUT POSITIVE FIXED REGULATOR
Datasheet download datasheet IRU1011-33PBF Datasheet
Additional preview pages of the IRU1011-33PBF datasheet.

📁 Similar Datasheet

Other Datasheets by International Rectifier
  • IRU1011-33 - 1.3A LOW DROPOUT POSITIVE FIXED REGULATOR
  • IRU1010 - 1A LOW DROPOUT POSITIVE ADJUSTABLE REGULATOR
  • IRU1010PBF - 1A LOW DROPOUT POSITIVE ADJUSTABLE REGULATOR
  • IRU1015 - 1.5A LOW DROPOUT POSITIVE ADJUSTABLE REGULATOR
  • IRU1015-33 - 1.5A LOW DROPOUT POSITIVE ADJUSTABLE REGULATOR
  • IRU1050 - 5A LOW DROPOUT POSITIVE ADJUSTABLE REGULATOR
  • IRU1075 - 7.5A LOW DROPOUT POSITIVE ADJUSTABLE REGULATOR
  • IRU1117 - 800mA LOW DROPOUT POSITIVE ADJUSTABLE REGULATOR

Full PDF Text Transcription

Click to expand full text
Data Sheet No.PD94544 revA IRU1011-33(PbF) 1.3A LOW DROPOUT POSITIVE FIXED REGULATOR FEATURES Stable with Ceramic Capacitor Guaranteed < 1.3V Dropout at Full Load Current Fast Transient Response Output Current Limiting Built-In Thermal Shutdown DESCRIPTION The IRU1011-33 is a fixed linear regulator and it is capable of supplying 1.3A of continuous current over line and temperature range. The IRU1011-33 is stable with low value ceramic capacitors, allowing designers flexibility in external component selection. The output is protected by both current limit and thermal shutdown. APPLICATIONS High Efficiency Linear Regulator Hard Disk Drivers, CD-ROMs, DVDs ADSL and Cable Modems TYPICAL APPLICATION 1 www.DataSheet4U.com NC NC VIN Gnd NC VOUT 6 5 4 IRU1011-33 2 5V 3 3.3V C2 4.
