IRU1117

800mA LOW DROPOUT POSITIVE ADJUSTABLE REGULATOR

IRU1117 Features

* Guaranteed < 1.2V Dropout at 800mA Load Current Fast Transient Response 1% Voltage Reference Initial Accuracy Built-In Thermal Shutdown Available in SOT-223, D-Pak, Ultra Thin-Pak TM and 8-Pin SOIC Surface-Mount Packages APPLICATIONS VGA & Sound Card Applications Low Voltage High Speed Termination

IRU1117 General Description

The IRU1117 is a low dropout, three-terminal adjustable regulator with minimum of 800mA output current capability. This product is specifically designed to provide well regulated supply for low voltage IC applications such as high speed bus termination and low current 3.3V logic supply. The IRU1117 .

IRU1117 Datasheet (222.75 KB)

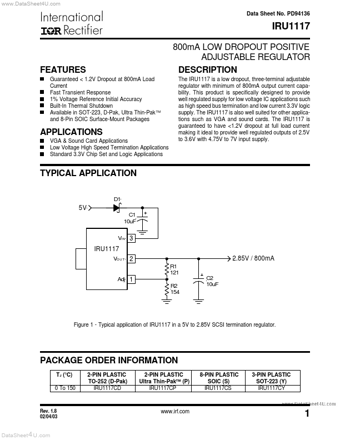

Preview of IRU1117 PDF

Datasheet Details

Part number:

IRU1117

Manufacturer:

International Rectifier

File Size:

222.75 KB

Description:

800ma low dropout positive adjustable regulator.
