IRU3004

5-BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER IC

IRU3004 Features

* Meets latest VRM 8.4 specification for PentiumIII Provides single chip solution for Vcore, GTL+ and clock supply On-Board DAC programs the output voltage from 1.3V to 3.5V. The IRU3004 remains on for VID code of (11111) Dual linear regulator controller on-board for 1.5V GTL+ and 2.5V clock supplies

IRU3004 General Description

The IRU3004 controller IC is specifically designed to meet Intel specifications for Pentium IIIā„¢ microprocess.

IRU3004 Datasheet (101.59 KB)

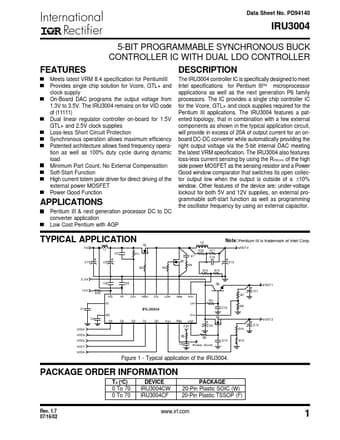

Preview of IRU3004 PDF

Datasheet Details

Part number:

IRU3004

Manufacturer:

International Rectifier

File Size:

101.59 KB

Description:

5-bit programmable synchronous buck controller ic.
