IRU3021M

5-BIT PROGRAMMABLE SYNCHRONOUS BUCK PLUS TRIPLE LDO CONTROLLER

IRU3021M Features

* lossless current sensing for both switcher by using the RDS(on) of the high-side power MOSFET as the sensing resistor, an output under-voltage shutdown that detects short circuit condition for the linear outputs and latches the system off, and a Power Good window comparator that switches its open c

IRU3021M General Description

The IRU3021M controller IC is specifically designed to meet Intel specification for next generation microprocessor applications requiring multiple on-board regulators. The IRU3021M provides a single chip controller IC for the Vcore, three LDO controllers, one with an automatic select pin that connec.

IRU3021M Datasheet (113.89 KB)

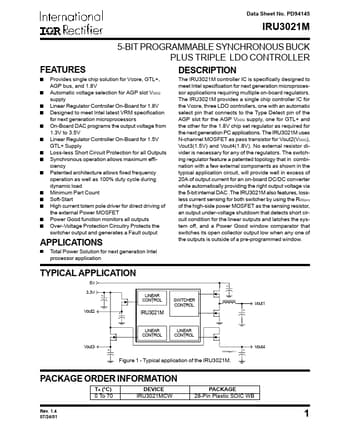

Preview of IRU3021M PDF

Datasheet Details

Part number:

IRU3021M

Manufacturer:

International Rectifier

File Size:

113.89 KB

Description:

5-bit programmable synchronous buck plus triple ldo controller.
