IRU3037

8-PIN SYNCHRONOUS PWM CONTROLLER

IRU3037 Features

* Synchronous Controller in 8-Pin Package Operating with single 5V or 12V supply voltage Internal 200KHz Oscillator (400KHz for IRU3037A) Soft-Start Function Fixed Frequency Voltage Mode 500mA Peak Output Drive Capability Protects the output when control FET is shorted DESCRIPTION The IRU3037 control

IRU3037 General Description

The IRU3037 controller IC is designed to provide a low cost synchronous Buck regulator for on-board DC to DC converter applications. With the migration of today’s ASIC products requiring low supply voltages such as 1.8V and lower, together with currents in excess of 3A, traditional linear regulators.

IRU3037 Datasheet (284.40 KB)

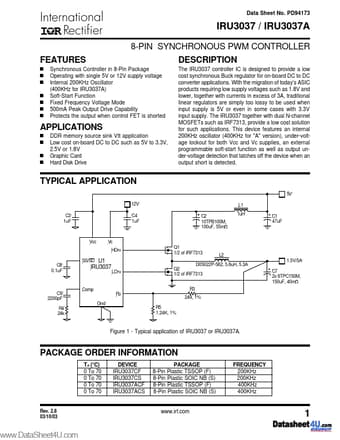

Preview of IRU3037 PDF

Datasheet Details

Part number:

IRU3037

Manufacturer:

International Rectifier

File Size:

284.40 KB

Description:

8-pin synchronous pwm controller.
