IRU3037APBF Datasheet, Controller, International Rectifier

IRU3037APBF Features

• Controller Synchronous Controller in 8-Pin Package Operating with single 5V or 12V supply voltage Internal 200KHz Oscillator (400KHz for IRU3037A) Soft-Start Function Fixed Frequency Voltage Mode

PDF File Details

Part number:

IRU3037APBF

Manufacturer:

International Rectifier

File Size:

163.07kb

Download:

📄 Datasheet

Description:

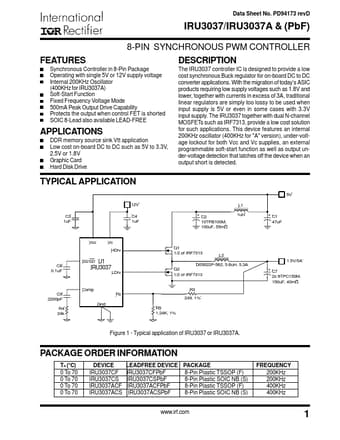

8-pin synchronous pwm controller. The IRU3037 controller IC is designed to provide a low cost synchronous Buck regulator for on-board DC to DC converter applications.

IRU3037APBF Application

• Applications DDR memory source sink Vtt application Low cost on-board DC to DC such as 5V to 3.3V, 2.5V or 1.8V Graphic Card Hard Disk Drive DESCRI

TAGS

IRU3037APBF

International Rectifier
