JANTX2N6847 Datasheet - International Rectifier

JANTX2N6847 - POWER MOSFET

Previous Datasheet Index Next Data Sheet Provisional Data Sheet No.

PD-9.553B HEXFET ® JANTX2N6847 POWER MOSFET JANTXV2N6847 [REF:MIL-PRF-19500/563] [GENERIC:IRFF9220] P-CHANNEL Product Summary Part Number JANTX2N6847 JANTXV2N6847 BVDSS -200V RDS(on) 1.5Ω ID -2.5A -200 Volt, 1.5Ω HEXFET HEXFET technology is the key to International Rectifier’s advanced line of power MOSFET transistors.

The efficient geometry achieves very low onstate resistance combined with high transconductance.

HEXFET t

JANTX2N6847 Features

* s s s s s Avalanche Energy Rating Dynamic dv/dt Rating Simple Drive Requirements Ease of Paralleling Hermetically Sealed Absolute Maximum Ratings Parameter I D @ VGS = -10V, TC = 25°C ID @ VGS = -10V, TC = 100°C IDM PD @ TC = 25°C VGS dv/dt TJ TSTG Continuous Drain Current Continuous Drain Curren

JANTX2N6847_InternationalRectifier.pdf

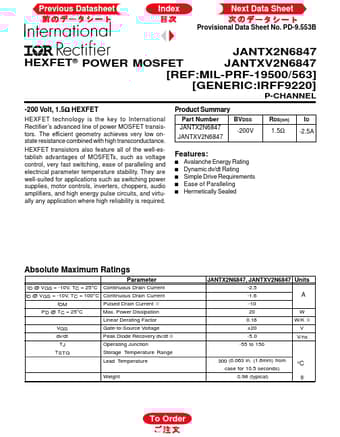

Preview of JANTX2N6847 PDF
JANTX2N6847 Datasheet Preview Page 2 JANTX2N6847 Datasheet Preview Page 3

Datasheet Details

Part number:

JANTX2N6847

Manufacturer:

International Rectifier

File Size:

233.49 KB

Description:

Power mosfet.
