MBR2045CTPbF, MBR2035CTPbF (MBR2xx5CTPbF) SCHOTTKY RECTIFIER

MBR2045CTPbF Description

www.DataSheet4U.com Bulletin PD-20866 rev.B 05/06 MBR20..CTPbF Series SCHOTTKY RECTIFIER 20 Amp IF(AV) = 20Amp VR = 35-45V Major Ratings and Char.
Features Units A This center tap Schottky rectifier has been optimized for low reverse leakage at high temperature.

MBR2045CTPbF Applications

* are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection. 150° C TJ operation Center tap TO-220 and D2Pak packages Low forward voltage drop High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance High frequen

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR2045CTPbF, MBR2035CTPbF. Please refer to the document for exact specifications by model.

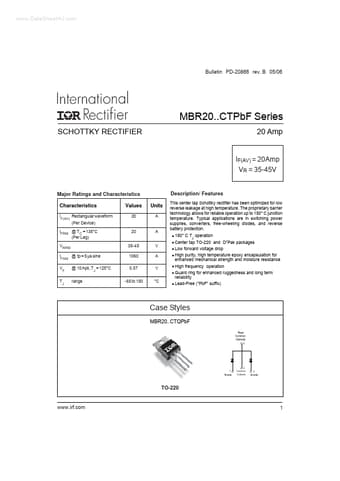

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR2045CTPbF, MBR2035CTPbF
Manufacturer
International Rectifier
File Size
199.16 KB
Datasheet
MBR2035CTPbF_InternationalRectifier.pdf
Description
(MBR2xx5CTPbF) SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: MBR2045CTPbF, MBR2035CTPbF.
Please refer to the document for exact specifications by model.
