OM8505SC

Ultra Low Dropout Positive Adjustable Linear Regulator

OM8505SC Datasheet (130.04 KB)

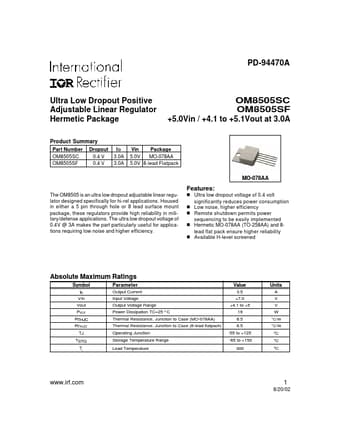

Preview of OM8505SC PDF

Datasheet Details

Part number:

OM8505SC

Manufacturer:

International Rectifier

File Size:

130.04 KB

Description:

Ultra low dropout positive adjustable linear regulator.
PD-94470A Ultra Low Dropout Positive OM8505SC Adjustable Linear Regulator OM8505SF Hermetic Package +5.0Vin / +4.1 to +5.1Vout at 3.0A Product .

OM8505SC Features

* n Ultra low dropout voltage of 0.4 volt significantly reduces power consumption n Low noise, higher efficiency n Remote shutdown permits power sequencing to be easily implemented n Hermetic MO-078AA (TO-258AA) and 8- lead flat pack ensure higher reliability n Available H-level screened Absolute Ma

OM8505SC General Description

1 Vin 2 GND 3 Vout 4 Shutdown 5 Adjust Mechanical Outline MO-078AA 12345 Base Base: 1010-1018 C.R.S. Pins: #52 Alloy, Copper Cored Seals: Glass

* 9013 or Equiv. Finish: 100-250 Microinches Electroless Nickel Over 50-250 Microinches Electrolytic Nickel. Pin Connections Termina.
