PVDZ172N Power MOSFET Photovoltaic Relay

The PVDZ172N Photovoltaic Relay is a single-pole, normally open solid state relay that can replace electromechanical relays used for general purpose switching of DC loads. It utilizes International Rectifier’s HEXFET power MOSFET as the output switch, driven by an integrated circuit photovoltaic gen.

PVDZ172N Features

* 250mΩ On-Resistance

* Bounce-Free Operation

* 1.5 Amp capacity

* 4,000 VRMS I/O Isolation

* Solid-State Reliability

* UL recognized

* ESD Tolerance: 4000V Human Body Model 500V Machine Model Applications

* Portable Electronics

* Programmable Logic Controllers

PVDZ172N_InternationalRectifier.pdf

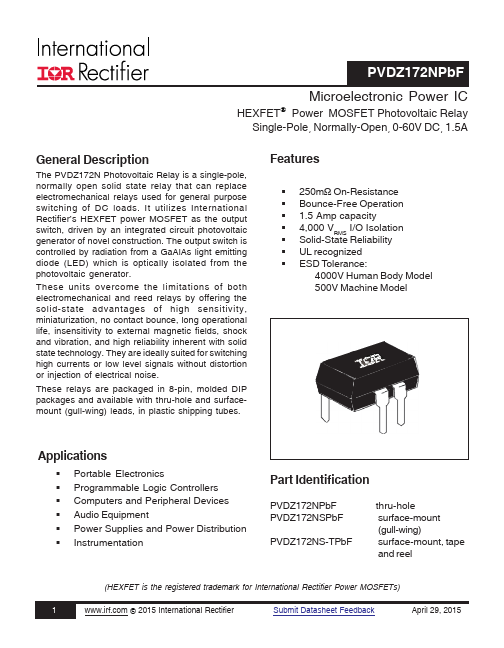

PVDZ172N Datasheet Preview — Preview of PVDZ172N PDF

Datasheet Details

Part number:

PVDZ172N

Manufacturer:

International Rectifier

File Size:

231.59 KB

Description:

Power mosfet photovoltaic relay.
