SD1500C08L - STANDARD RECOVERY DIODE

This page provides the datasheet information for the SD1500C08L, a member of the SD1500C04L STANDARD RECOVERY DIODE family.

Datasheet Summary

Features

  • Wide current range High voltage ratings up to 3000V High surge current capabilities Diffused junction Hockey Puk version Case style DO-200AB (B-PUK) Typical.

📥 Download Datasheet

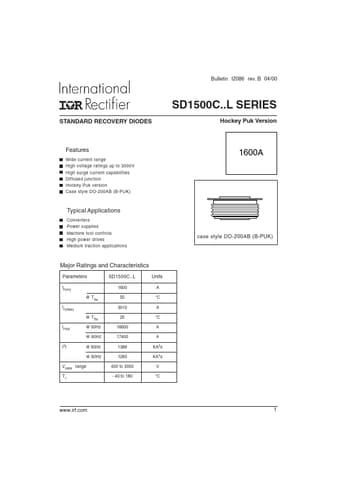

Datasheet preview – SD1500C08L

📁 Similar Datasheet

  • SD1500C08L - Standard Recovery Diodes (Vishay)
  • SD1500C04L - Standard Recovery Diodes (Vishay)
  • SD1500C12L - Standard Recovery Diodes (Vishay)
  • SD1500C16L - Standard Recovery Diodes (Vishay)
  • SD1500C20L - Standard Recovery Diodes (Vishay)
  • SD1500C25L - Standard Recovery Diodes (Vishay)
  • SD1500C30L - Standard Recovery Diodes (Vishay)
  • SD15 - 500W Unidirectional TVS Diode (Leiditech)
  • SD15 - STANDARD CAPACITANCE TVS ARRAY / ESD ARRAY (KD)
  • SD15 - Unidirectional TVS Diode (UDF)
Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text
Bulletin I2086 rev. B 04/00 STANDARD RECOVERY DIODES SD1500C..L SERIES Hockey Puk Version Features Wide current range High voltage ratings up to 3000V High surge current capabilities Diffused junction Hockey Puk version Case style DO-200AB (B-PUK) Typical Applications Converters Power supplies Machine tool controls High power drives Medium traction applications Major Ratings and Characteristics Parameters SD1500C..L Units IF(AV) IF(RMS) IFSM @ Ths @ Ths @ 50Hz @ 60Hz I2t @ 50Hz @ 60Hz VRRM range TJ 1600 55 3010 25 16600 17400 1386 1265 400 to 3000 - 40 to 180 A °C A °C A A KA2s KA2s V °C 1600A case style DO-200AB (B-PUK) www.irf.com 1 SD1500C..L Series Bulletin I2086 rev.
