SD200N - 1200V 200A Std. Recovery Diode

Features

  • Wide current range High voltage ratings up to 2400V High surge current capabilities Stud cathode and stud anode version Standard JEDEC types 200A Typical.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SD200 (SD200 - SD203) High-Speed Analog N-Channel Enhancement-Mode DMOS FETS Calogic
SD2000A Integrated TFT LCD Display Controller SmartASIC
SD20 Small Compact Size DC-DC Converter ODP
SD20 Unidirectional TVS Diode UDF
SD20-100 Shielded Inductors Cooper Electronic

Other Datasheets by International Rectifier (now Infineon)

Part Number Description
SD2000C STANDARD RECOVERY DIODES Hockey Puk Version
SD200R 1200V 200A Std. Recovery Diode
SD203N FAST RECOVERY DIODES Stud Version
SD203R FAST RECOVERY DIODES Stud Version
SD241 40 AND 60 AMP DUAL SCHOTTKY CENTER TAP RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

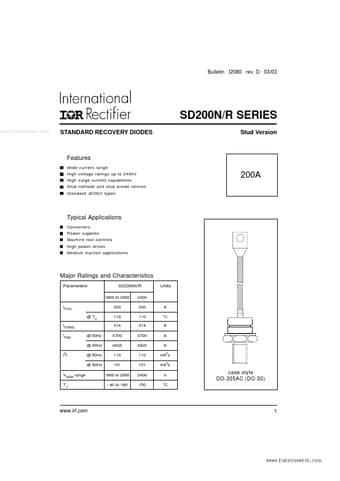

Bulletin I2080 rev. D 03/03 SD200N/R SERIES www.DataSheet4U.com STANDARD RECOVERY DIODES Stud Version Features Wide current range High voltage ratings up to 2400V High surge current capabilities Stud cathode and stud anode version Standard JEDEC types 200A Typical Applications Converters Power supplies Machine tool controls High power drives Medium traction applications Major Ratings and Characteristics Parameters SD200N/R 1600 to 2000 IF(AV) @ TC IF(RMS) IFSM @ 50Hz @ 60Hz I2t @ 50Hz @ 60Hz V RRM range TJ 200 110 314 4700 4920 110 101 1600 to 2000 - 40 to 180 2400 200 110 314 4700 4920 110 101 2400 150 A °C A A A KA2s KA2s V °C Units case style DO-205AC (DO-30) www.irf.com 1 SD200N/R Series Bulletin I2080 rev.
