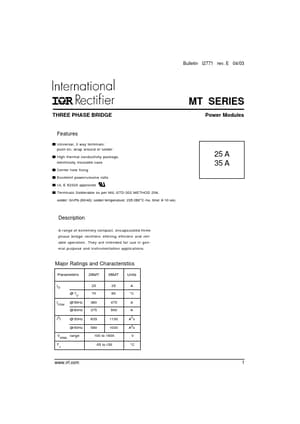

datasheet Preview Page 1 from Datasheet4u.com

26MT80 THREE PHASE BRIDGE

Bulletin I2771 rev.E 04/03 MT SERIES THREE PHASE BRIDGE Power Modules .
A range of extremely compact, encapsulated three phase bridge rectifiers offering efficient and reliable operation.

26MT80_InternationalRectifier.pdf

26MT80 Datasheet Preview — Preview of 26MT80 PDF

Datasheet Details

Part number:

26MT80

Manufacturer:

InternationalRectifier

File Size:

75.60 KB

Description:

THREE PHASE BRIDGE

Features

* Universal, 3 way terminals: push-on, wrap around or solder High thermal conductivity package, electrically insulated case Center hole fixing Excellent power/volume ratio UL E 62320 approved Terminals Solderable as per MIL-STD-202 METHOD 208, solder: Sn/Pb (60/40); solder temperature: 235-260°C mx. t

Applications

* Major Ratings and Characteristics Parameters IO @ TC IFSM @ 50Hz @ 60Hz I2t @ 50Hz @ 60Hz VRRM range TJ 26MT 25 70 360 375 635 580 36MT 35 60 475 500 1130 1030 Units A °C A A A2s A2s V °C 100 to 1600 -55 to 150 www. irf. com 1 26MT. . /36MT. . Series Bulletin I2771 rev. E 04/03 ELECTRICAL SPECI
