MHF2815D Datasheet - Interpoint

(MHF2805S / MHF2812S / MHF2815S / MHF2812D / MHF2815D) DC/DC Converters

MHF2815D Features

* 55° to +125°C operation

* 16 to 40 VDC input (19 to 40 VDC for 15 volt outputs)

* Fully Isolated

* Optocoupler feedback

* Fixed frequency 600 kHz typical

* Forward converter topology

* 50 V for up to 50 ms transient protection

MHF2815D General Description

The MHF Series™ of DC/DC converters offer up to 12 watts of power from single or dual outputs in a single package over a the full military temperature range. Thick film hybrid manufacturing technology produces high levels of miniaturization, giving the MHF Series converters a low profile (0.330 inch.

MHF2815D Datasheet (88.64 KB)

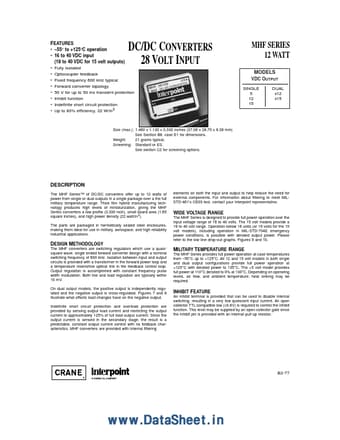

MHF2815D Datasheet Preview — Preview of MHF2815D PDF

Datasheet Details

Part number:

MHF2815D

Manufacturer:

Interpoint

File Size:

88.64 KB

Description:

(mhf2805s / mhf2812s / mhf2815s / mhf2812d / mhf2815d) dc/dc converters.
