ACTS10MS Datasheet - Intersil Corporation

ACTS10MS Radiation Hardened Triple Three-Input NAND Gate

The Intersil ACTS10MS is a radiation hardened triple three-input NAND gate. A high on all inputs forces the output to a low state. The ACTS10MS utilizes advanced CMOS/SOS technology to achieve high-speed operation. This device is a member of the radiation hardened, high-speed, CMOS/SOS Logic Family..

ACTS10MS Features

* 1.25 Micron Radiation Hardened SOS CMOS

* Total Dose 300K RAD (Si)

* Single Event Upset (SEU) Immunity 80 MEV-cm2/mg

* Dose Rate Upset >1011 RAD (Si)/s, 20ns Pulse

* Latch-Up Free Under Any Conditi

ACTS10MS_IntersilCorporation.pdf

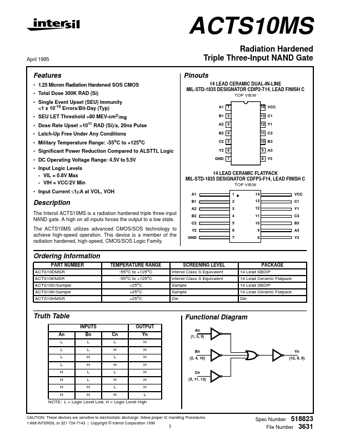

Preview of ACTS10MS PDF
ACTS10MS Datasheet Preview Page 2 ACTS10MS Datasheet Preview Page 3

Datasheet Details

Part number:

ACTS10MS

Manufacturer:

Intersil Corporation

File Size:

112.29 KB

Description:

Radiation hardened triple three-input nand gate.
