CA3242 Datasheet - Intersil Corporation

Quad-Gated Inverting Power Driver For Interfacing Low-Level Logic to High Current Load

CA3242 Features

* Driven Outputs Capable of Switching 600mA Load Currents Without Spurious Changes in Output State

* Inputs Compatible with TTL or 5V CMOS Logic

* Suitable for Resistive or Inductive Loads

* Output Overload Protection

* Power-Frame Construction for Good Heat D

CA3242 General Description

The CA3242 quad-gated inverting power driver contains four gate switches for interfacing low-level logic to inductive and resistive loads such as: relays, solenoids, AC and DC motors, heaters, incandescent displays, and vacuum fluorescent displays. Output overload protection is provided when the load.

CA3242 Datasheet (12.94 KB)

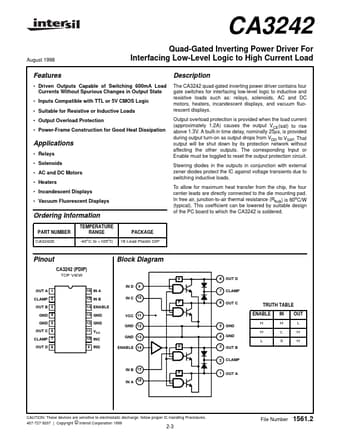

Preview of CA3242 PDF

Datasheet Details

Part number:

CA3242

Manufacturer:

Intersil Corporation

File Size:

12.94 KB

Description:

Quad-gated inverting power driver for interfacing low-level logic to high current load.
