CD22102 Datasheet - Intersil Corporation

CD22102 CMOS 4 x 4 x 2 Crosspoint Switch with Control Memory

Semiconductor CD22101, CD22102 x 4 x 2 Crosspoint Switch with Control Memory CD22101 and CD22102 crosspoint switches consist of 4 x 4 x 2 arrays of crosspoints (transmission gates) with a 4-line to 16-line decoder and 16 latch circuits. Any one of the sixteen crosspoint pairs can be selected by applying the appropriate four-line address, corresponding crosspoints in each array are turned on and off simultaneously. Any number of crosspoints can be turned on simultaneously. In the CD22101, the se.

CD22102 Features

* [ /Title (CD22 101, CD221 02) /Subject (CMO S4x4 x2 Crosspoint Switch with Control Memory) / Author () /Keywords (Harris Semiconductor, Telecom, SLICs, SLACs , Telephone, Telephony, WLL, Wireless T CMOS 4 E PRODUC OBSOLET CEMENT A L P E R D E D MEN 0-442-7747 NO RECOM ations 1-80 .com c li p p A l

CD22102_IntersilCorporation.pdf

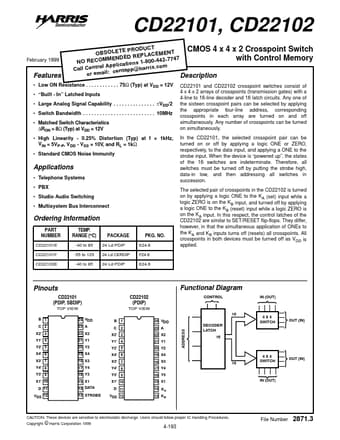

Preview of CD22102 PDF
CD22102 Datasheet Preview Page 2 CD22102 Datasheet Preview Page 3

Datasheet Details

Part number:

CD22102

Manufacturer:

Intersil Corporation

File Size:

159.08 KB

Description:

Cmos 4 x 4 x 2 crosspoint switch with control memory.
