CD80C88 - CMOS 8/16-Bit Microprocessor

General Description

The Intersil 80C88 high performance 8/16-bit CMOS CPU is manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV).

Key Features

  • Compatible with NMOS 8088.
  • Direct Software Compatibility with 80C86, 8086, 8088.
  • 8-Bit Data Bus Interface; 16-Bit Internal Architecture.
  • Completely Static CMOS Design - DC.
  • . . . . 5MHz (80C88) - DC.
  • . . .8MHz (80C88-2).
  • Low Power Operation - ICCSB.
  • . . . . 500µA Maximum - ICCOP.
  • 10mA/MHz Maximu.

📥 Download Datasheet

Full PDF Text Transcription for CD80C88 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for CD80C88. For precise diagrams, and layout, please refer to the original PDF.

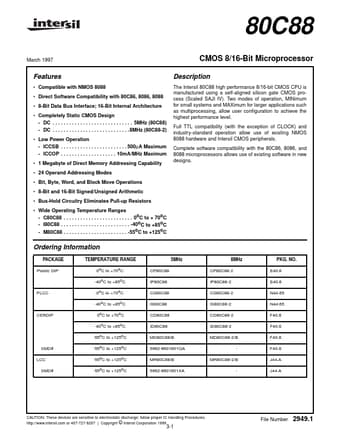

80C88 March 1997 CMOS 8/16-Bit Microprocessor Description The Intersil 80C88 high performance 8/16-bit CMOS CPU is manufactured using a self-aligned silicon gate CMOS pro...

View more extracted text
it CMOS CPU is manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV). Two modes of operation, MINimum for small systems and MAXimum for larger applications such as multiprocessing, allow user configuration to achieve the highest performance level. Full TTL compatibility (with the exception of CLOCK) and industry-standard operation allow use of existing NMOS 8088 hardware and Intersil CMOS peripherals. Complete software compatibility with the 80C86, 8086, and 8088 microprocessors allows use of existing software in new designs.
