DG182BP Datasheet - Intersil Corporation

High-Speed Drivers with JFET Switch

DG182BP Features

* DG 90: DG 043, HI DG1 91: HI-5

* Constant ON-Resistance for Signals to ±10V (DG182, DG1 DG185, DG188, DG191), to ±7.5V (All Devices)

* ±15V Power Supplies

DG182BP General Description

The DG181 thru DG191 series of analog gates consist of 2 or 4 N-channel junction-type ﬁeld-effect transistors (JFET) designed to function as electronic switches. Level-shifting drivers enable low-level inputs (0.8V to 2V) to control the ON-OFF state of each switch. The driver is designed to provide .

DG182BP Datasheet (75.35 KB)

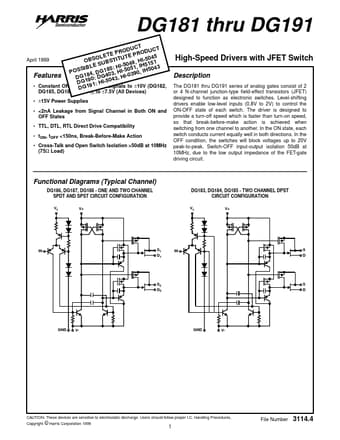

DG182BP Datasheet Preview — Preview of DG182BP PDF

Datasheet Details

Part number:

DG182BP

Manufacturer:

Intersil Corporation

File Size:

75.35 KB

Description:

High-speed drivers with jfet switch.
