DG444

Monolithic / Quad SPST / CMOS Analog Switches

DG444 Features

* ON Resistance (Max) . . . . . . . . . . . . . . . . . . . . . . . . . 85Ω

* Low Power Consumption (PD) . . . . . . . . . . . . . . . .

DG444 General Description

DG445 S1 PIN 1 2 3 4 5 6 7 8 9 10 11 12 SYMBOL IN1 D1 S1 VGND S4 D4 IN4 IN3 D3 S3 VL V+ S2 D2 IN2 DESCRIPTION Logic Control for Switch 1 Drain (Output) Terminal for Switch 1 Source (Input) Terminal for Switch 1 Negative Power Supply Terminal Ground Terminal (Logic Common) Source (Input) Terminal.

DG444 Datasheet (103.20 KB)

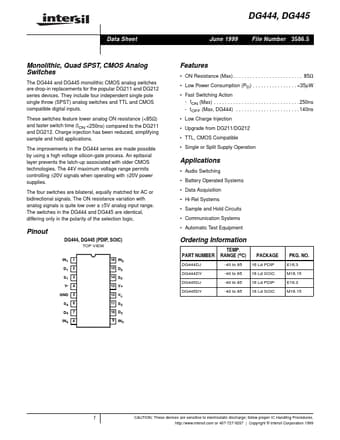

Preview of DG444 PDF

Datasheet Details

Part number:

DG444

Manufacturer:

Intersil Corporation

File Size:

103.20 KB

Description:

Monolithic / quad spst / cmos analog switches.
DG444, DG445 Data Sheet June 1999 File Number 3586.5 Monolithic, Quad SPST, CMOS Analog Switches The DG444 and DG445 monolithic CMOS analog switches .
