HA3-2544C-5 50MHz/ Video Operational Amplifier

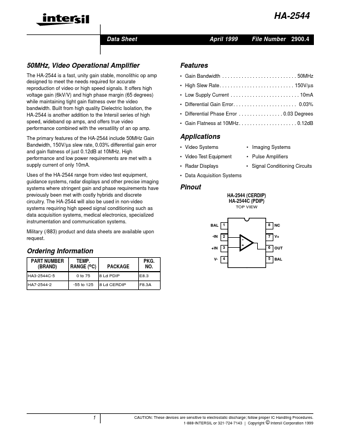

HA-2544 Data Sheet April 1999 File Number 2900.4 50MHz, Video Operational Ampliﬁer The HA-2544 is a fast, unity gain stable, monolithic op amp designed to meet the needs required for accurate reproduction of video or high speed signals. It offers high voltage gain (6kV/V) and high phase margin (65 degrees) while maintaining tight gain ﬂatness over the video bandwidth. Built from high quality Dielectric Isolation, the HA-2544 is another addition to the Intersil series of high speed, wideband op .

HA3-2544C-5 Features

* of the HA-2544 include 50MHz Gain Bandwidth, 150V/µs slew rate, 0.03% differential gain error and gain ﬂatness of just 0.12dB at 10MHz. High performance and low power requirements are met with a supply current of only 10mA. Uses of the HA-2544 range from video test equipment, guidance systems, radar
