HA4-5177883 - Ultra Low Offset Voltage Operational Amplifier

Datasheet Summary

Description

The HA-5177/883 is a monolithic, all bipolar, precision operational ampliﬁer, utilizing Intersil Dielectric Isolation and advance processing techniques.

Features

a combination of precision input characteristics, wide gain bandwidth (2MHz) and high speed (0.5V/µs min) and is an improved version of the HA-5135/883. The HA-5177/883 uses advanced matching techniques and laser trimming to produce low offset voltage (10µV typ, 60µV max) and low offset voltage drift (0.1µV/oC typ, 0.6µV/oC max). This design also features low voltage noise (9nV/√Hz typ), Low current noise (0.32pA/√Hz typ), nanoamp input currents, and 126dB minimum gain. These outstanding feature.

Intersil Corporation

📥 Download Datasheet

Datasheet Details

Part number	HA4-5177883
Manufacturer	Intersil Corporation
File Size	35.53 KB
Description	Ultra Low Offset Voltage Operational Amplifier
Datasheet	HA4-5177883 Datasheet
Additional preview pages of the HA4-5177883 datasheet.

📁 Similar Datasheet

HA4000-AL - Planar Transformer (Coilcraft)
HA40101V4-0000-999 - DC Fan (SUNON)
HA4018-AL - Flyback Transformer (Coilcraft)
HA4060-AL - Flyback Transformer (Coilcraft)
HA4061-AL - Flyback Transformer (Coilcraft)
HA4158-EL - Dual Inductors (Coilcraft)
HA4741 - General Purpose Operational Amplifier (Raytheon)
HA4741 - General Purpose Operational Amplifier (Fairchild)
HA48110 - Panel Mount (Crydom)
HA48110E - Panel Mount (Crydom)

Other Datasheets by Intersil Corporation

HA4-5104883 - Low Noise/ High Performance/ Quad Operational Amplifier
HA4-5112883 - Dual/ Low Noise/ High Performance Uncompensated Operational Amplifier
HA4-5114883 - Quad/ Low Noise/ High Performance Uncompensated Operational Amplifier
HA4-5137883 - 60MHz/ Ultra Low Noise/ Precision Operational Amplifier
HA4-5020883 - 100MHz Current Feedback Video Amplifier with Disable
HA4-5320883 - High Speed Precision Sample and Hold Amplifier
HA4-5340883 - High Speed/ Low Distortion/ Precision Monolithic Sample and Hold Amplifier
HA4-2546883 - Wideband Two Quadrant Analog Multiplier (Voltage Output)

Full PDF Text Transcription

Click to expand full text

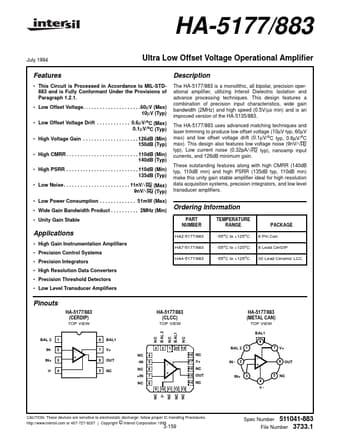

HA-5177/883 July 1994 Ultra Low Offset Voltage Operational Ampliﬁer Description The HA-5177/883 is a monolithic, all bipolar, precision operational ampliﬁer, utilizing Intersil Dielectric Isolation and advance processing techniques. This design features a combination of precision input characteristics, wide gain bandwidth (2MHz) and high speed (0.5V/µs min) and is an improved version of the HA-5135/883. The HA-5177/883 uses advanced matching techniques and laser trimming to produce low offset voltage (10µV typ, 60µV max) and low offset voltage drift (0.1µV/oC typ, 0.6µV/oC max). This design also features low voltage noise (9nV/√Hz typ), Low current noise (0.32pA/√Hz typ), nanoamp input currents, and 126dB minimum gain.
